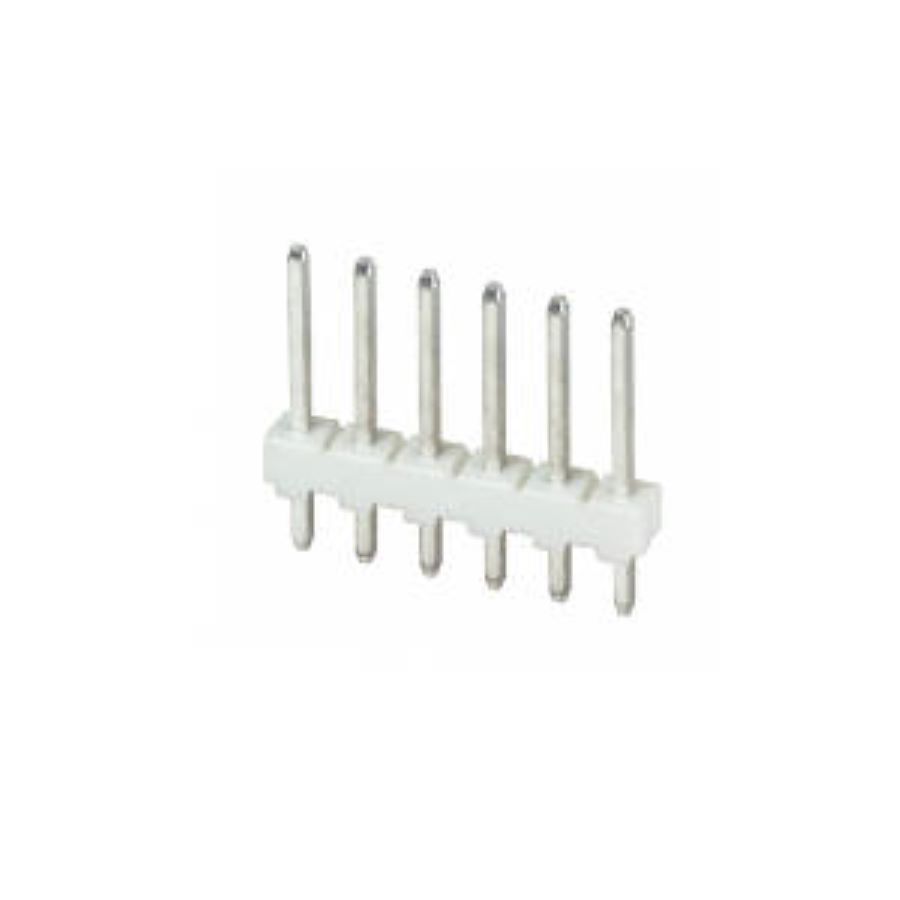

3-644456-6
Manufacturer:
TE Connectivity
Mfr.Part #:
3-644456-6
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.48 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 6 |
| Height | 10.033 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 2.33 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 7.493 mm |
| PCB Thickness | 1.6002 mm |
| Tail Length | 2.794 mm |
| Plating Thickness | 8.89 µm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Retention | Without |
| Termination Post Length | 2.79 mm |
| PCB Mount Retention | Without |
| PCB Mount Alignment | Without |
Stock: 4130
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.20690 | $2.06900 |
| 25 | $0.18809 | $4.70225 |
| 50 | $0.17617 | $8.80850 |
| 100 | $0.16500 | $16.50000 |
| 300 | $0.15856 | $47.56800 |
| 500 | $0.15237 | $76.18500 |
| 1000 | $0.14643 | $146.43000 |
| 3000 | $0.14072 | $422.16000 |
| 5000 | $0.13523 | $676.15000 |
| 10000 | $0.12995 | $1299.50000 |
